Engineered Capabilities

Detailed technical breakdowns of our cold storage rooms, positive chillers, deep freezers, outdoor condensing units, and commercial air conditioning solutions.

Core Engineering-40°C to +15°C

SMART COOLSYSTEMS provides turnkey cold storage room construction and commercial storage room installation tailored to warehouse dimensions, product volume, and temperature requirements. Using high-density PUF insulated panels with airtight camlock joints, we ensure energy efficiency and reliable thermal retention for businesses across Kerala, Tamil Nadu, and Karnataka.

Key Engineering Highlights

Custom room dimensions tailored to warehouse or facility space
High-density PUF (Polyurethane Foam) panels (60mm to 150mm thickness)
Food-grade pre-painted galvanized steel (PPGI) / Stainless Steel lining
Thermal-break floor insulation with heavy-load chequered plate finish
Hermetic & semi-hermetic refrigeration unit integration
Emergency inside door release and safety escape alarms

Technical Specifications

Insulation CoreRigid Polyurethane Foam (PUF) 40±2 kg/m³
Panel Thickness60mm / 80mm / 100mm / 120mm / 150mm
Joint SystemTongue & Groove with Camlock Fasteners
Cladding Sheet0.5mm PPGI / SS 304 Food-Grade Finish
Door OptionsHinged Flush Doors / Heavy Duty Sliding Doors
Request Quote on WhatsAppSend Custom Inquiry

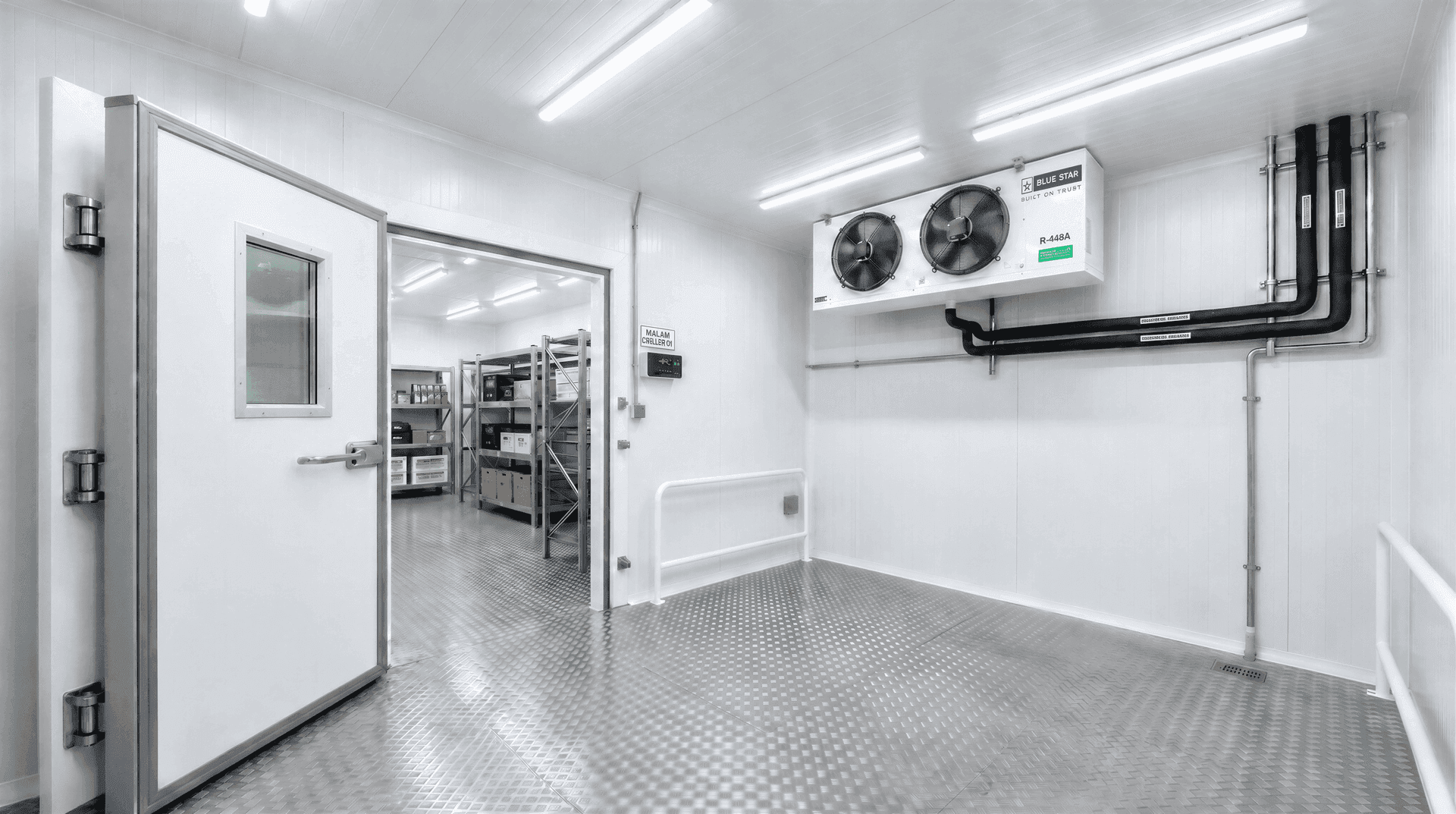

Commercial walk-in cold storage room constructed with modular PUF panels and evaporator cooling unit
High Efficiency0°C to +8°C

SMART COOLSYSTEMS designs and installs commercial walk-in chiller rooms maintaining steady positive temperature conditions with active humidity control. Engineered with high-efficiency evaporator coils and smart defrost controls, our chiller facilities preserve perishables effectively. Available for commercial clients in Kerala, Tamil Nadu, and Karnataka.

Key Engineering Highlights

Precision digital micro-climate and humidity controllers
High airflow low-noise evaporator cooling fan units
Anti-bacterial silicone sealing and rounded hygiene coving
Even air circulation eliminating hot and cold spots
LED moisture-proof vapor lighting fixtures
Low electricity consumption with inverter compressor compatibility

Technical Specifications

Operating Temp0°C to +8°C (Customizable ±0.5°C)
Defrost MechanismAir Defrost / Electric Heating Element
Evaporator TypeCopper Tube with Hydrophilic Aluminium Fins
Panel Thickness60mm to 80mm PUF
RefrigerantEco-friendly R404A / R410A / R134a
Request Quote on WhatsAppSend Custom Inquiry

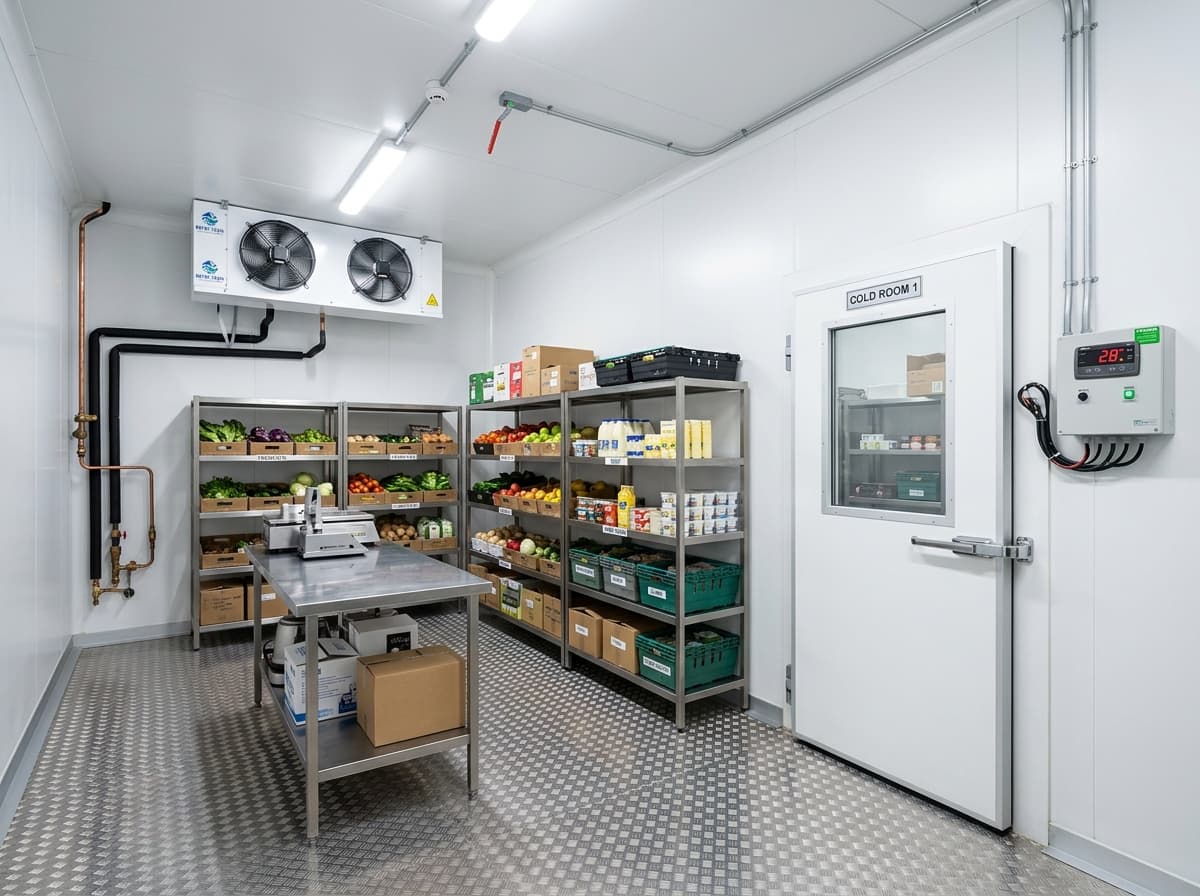

Walk-in chiller room with stainless steel work table, storage racks, and dual evaporator cooling units
Sub-Zero Performance-15°C to -40°C

Engineered for sub-zero temperature control, SMART COOLSYSTEMS constructs deep freezer rooms and blast freezers with reinforced floor insulation, heated door frames to prevent ice buildup, pressure equalizing safety valves, and heavy-duty compressor setups. We undertake complete freezer facility projects across Kerala, Tamil Nadu, and Karnataka.

Key Engineering Highlights

Deep freezing down to -40°C for blast freezing applications
120mm to 150mm thick PUF insulation with zero thermal bridge design
Heated peripheral door gaskets preventing frost formation and freezing shut
Two-way pressure equalization release valves
Underfloor ventilation & heating mats to eliminate ground frost heave
Automatic hot gas or electrical defrost cycles

Technical Specifications

Storage Freezer Temp-18°C to -25°C
Blast Freezer Temp-35°C to -40°C
Panel Thickness100mm / 120mm / 150mm High Density PUF
Floor SystemPlywood + PUF + Heavy Chequered Aluminium Sheet
Safety ValveCalibrated Pressure Relief Valve Installed
Request Quote on WhatsAppSend Custom Inquiry

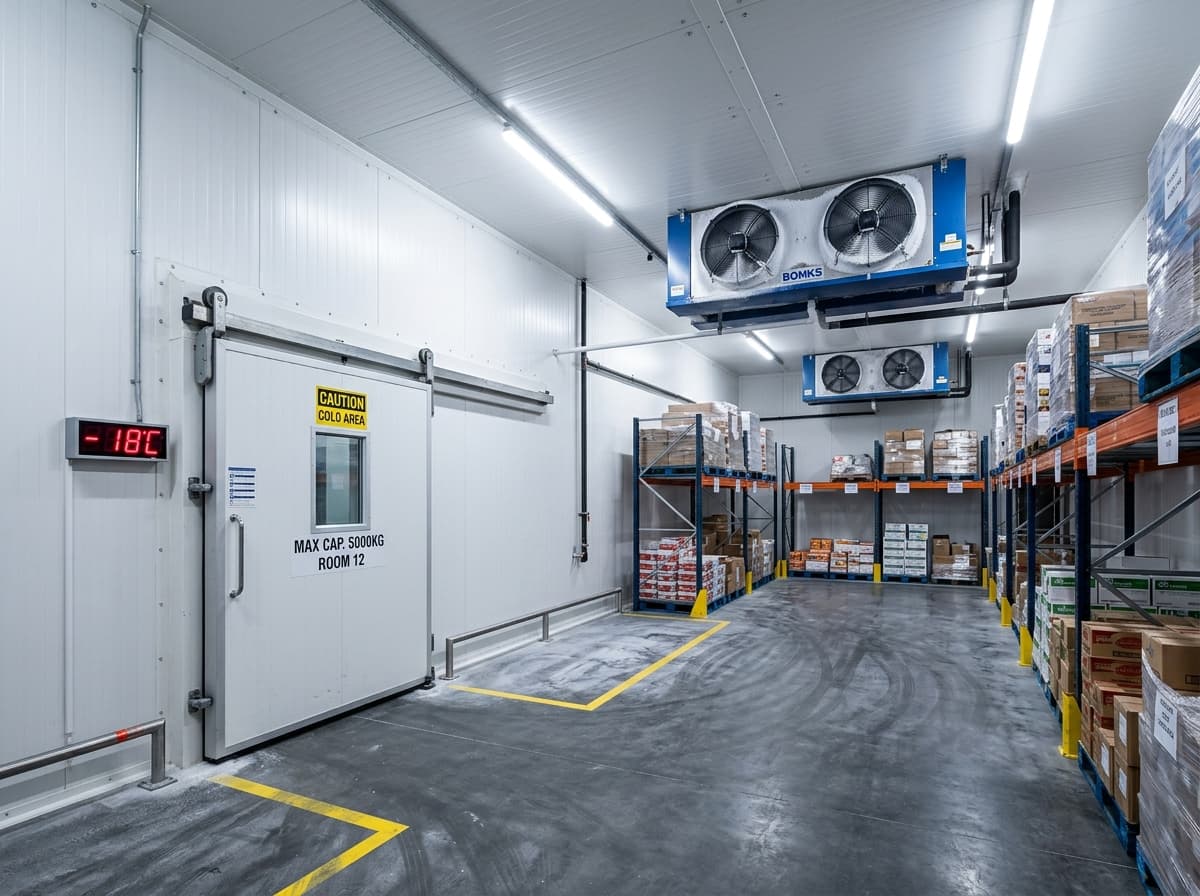

Industrial deep freezer storage room with -18C temperature display and heavy duty insulated sliding door
Professional Mechanical WorkAll Temperature Specs

SMART COOLSYSTEMS delivers on-site mechanical and refrigeration equipment installation. From custom weather-proof outdoor condenser cages and nitrogen-purged copper brazing to vibration isolation, safety switches, and refrigerant charging, we ensure long-term cooling efficiency. Serving facilities in Kerala, Tamil Nadu, and Karnataka.

Key Engineering Highlights

Protective weatherproof steel cage fabrication for outdoor condensing units
High-grade refrigeration-grade copper tube piping with closed-cell Armaflex insulation
Danfoss / Emerson Copeland / Tecumseh compressor configurations
Integrated dual pressure switches (HP/LP) and oil separators
Liquid line filter driers, solenoid valves, and moisture indicators
Complete electrical control panel with phase failure & overload protection

Technical Specifications

Compressor BrandsDanfoss, Copeland, Tecumseh, Bitzer
Piping MaterialDeoxidized High Phosphorus (DHP) Seamless Copper
Piping InsulationClass-1 Nitrile Rubber Foam Tubing (Armaflex)
Control PanelMicroprocessor Digital Controller with Display
Protective FramePowder-Coated Industrial Steel Mesh Cage
Request Quote on WhatsAppSend Custom Inquiry
Outdoor commercial refrigeration condensing unit in royal blue protective steel cage with Danfoss compressor
Thermal InsulationHigh Thermal Resistance

SMART COOLSYSTEMS supplies and erects high-density PUF (Polyurethane Foam) insulated sandwich panels with tongue-and-groove camlock joints and hygienic corner coving profiles. Our panels offer low thermal conductivity (k-value: 0.022 W/m.K), reducing operational power costs for temperature-controlled storage rooms across Kerala, Tamil Nadu, and Karnataka.

Key Engineering Highlights

CFC-free / HCFC-free high-density rigid polyurethane foam core (40 kg/m³)
Low thermal conductivity (k-value: 0.022 W/m.K) for minimal heat ingress
Tongue & groove interlock system with internal eccentric camlocks
Pre-painted galvanized steel (PPGI) skins resistant to corrosion and moisture
Aluminium / PVC inner corner coving for clean room hygiene compliance
Fast modular assembly with zero structural compromise

Technical Specifications

Density40 ± 2 kg/m³
Thermal Conductivity0.022 W/m·K (High Insulation Efficiency)
Compressive Strength150–180 kPa
Facing Materials0.5mm PPGI / Stainless Steel 304
Fire ResistanceSelf-Extinguishing Grade
Request Quote on WhatsAppSend Custom Inquiry

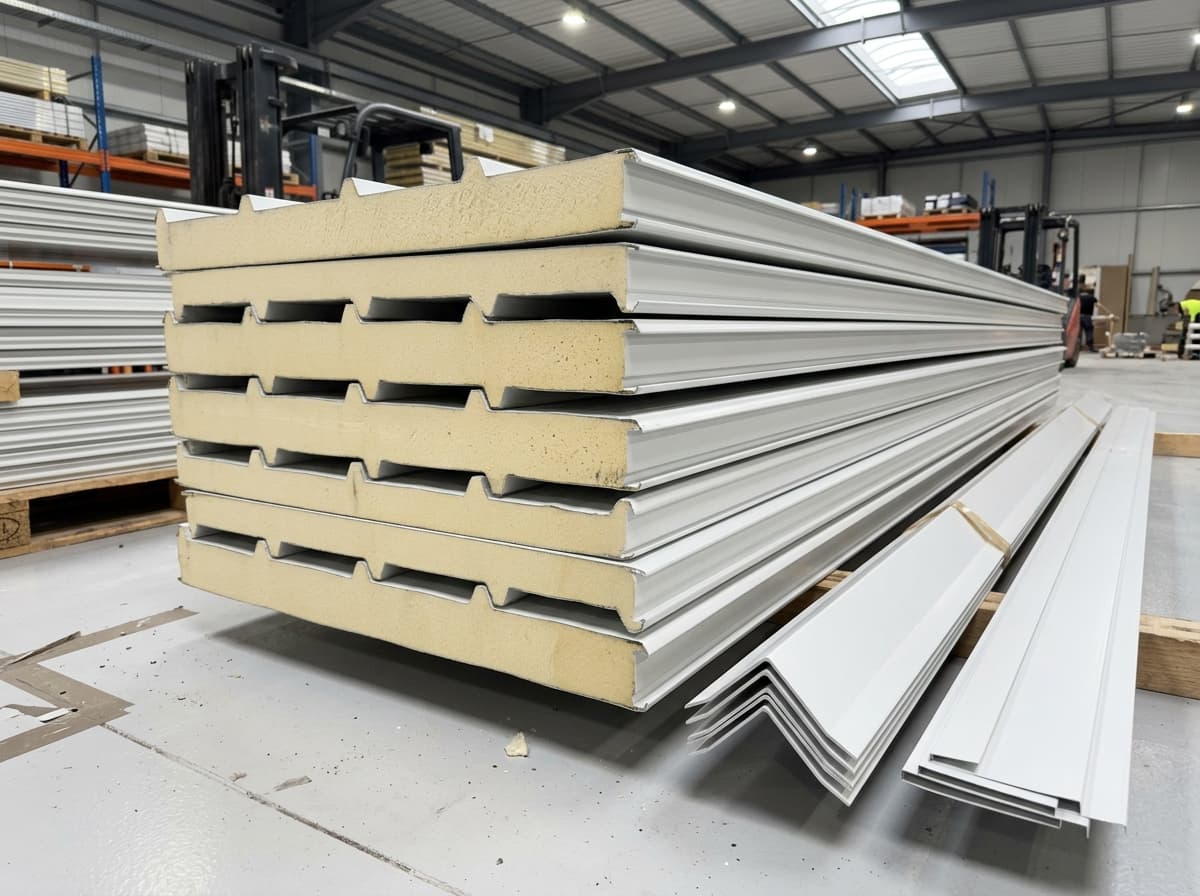

Factory manufactured high-density PUF insulated sandwich panels and angle flashings for cold room construction

Need a Customized Cold Storage Plan or Sizing Calculation?

Our engineers provide direct on-site consultation and layout sizing across Palakkad and Kerala.
